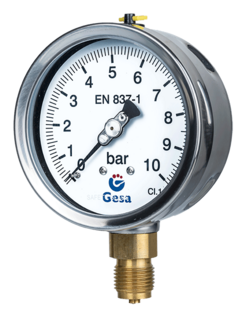

Glycerin-Filled Pressure Gauges M0304

Description: The M0304 pressure gauges offer a long service life and great versatility thanks to their micrometric adjustment needle. The bayonet closure allows access to the needle for adjustments or recalibration if the instrument loses functionality.

Safety: Equipped with safety glass, they ensure safe use without risk of breakage due to overpressure. For dynamic pressures, the glycerin filling option is recommended.

Construction: Their mechanism features a Bourdon tube made of copper alloy, ideal for low-viscosity fluids that do not corrode this material. Accuracy varies by diameter: Ø100 and Ø160 mm with class 1.0 (±1.0%) and Ø63 mm with class 1.6 (±1.6%).

Installation: Compatible with flanges and mounting rings, they facilitate installation in control panels or complex systems.

Applications: Versatile and robust, the M0304 gauges are ideal for demanding conditions and aggressive environments, such as irrigation systems, HVAC installations, or industrial applications.
