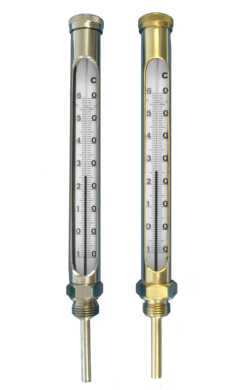

Industrial glass thermometers with opal scale

Description | Technical details | Specifications

Universal applications in engines, industrial and naval systems, piping and heating installations...
They resist extreme hard conditions: vibrations, humidity, indoor and outdoors.

PreviewAttachmentSize
Industrial glass thermometers with opal scale F0101221.71 KB
Ref.:F0
In stock.
In stock

Inmediate delivery
45,30€
Expand options
Collapse options
Thermometer angle: Straight

Output stem angle

Temperature range (ºC): -40+40
Scale temperature: ºC
Thermometric liquid: Blue Liquid

liquid used for the glass rods

Upper closing of the thermometer : Welded glass
Dimensions of the body: 145xØ20mm
Stem length (mm): 50
Stem diameter (mm): Ø10
Connection of the stem to the facility: Fixed connection
Threaded connection: ½" BSP
Sheath and thread material for opal scale thermometers: Brass
Calibration certificate: I do not need to calibrate this device

El certificado de calibración es un documento adjunto al instrumento que especifica el error y desviación en determnados puntos, es requerido en diversas áreas.

Calibration traceable to ENAC patterns: 3 point temperature calibration

El certificado de calibración es un documento que acredita el correcto funcionamiento del instrumento de cara a inspecciones y reglamentos. Para ello se contrastan las lecturas del instrumento

Points of the scale to calibrate:
Increment of 1 unit:
Language of certificate: Spanish
Calibration remarks:
Increment of 1 unit:
Technical documentation:
PreviewAttachmentSize
Industrial glass thermometers with opal scale F0101221.71 KB
